उत्पाद का विवरण
उत्पत्ति के प्लेस: गुआंगज़ौ, गुआंग्डोंग, चीन
ब्रांड नाम: Guangzhou Xingjin Fire Equipment Co.,Ltd.
प्रमाणन: CCC,ROHS,CAC
मॉडल संख्या: JGQ2/1.6-XJ
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: USD380-520/set
पैकेजिंग विवरण: लकड़ी का बक्सा या प्लाईवुड बाहरी बक्सा बबल बैग या कागज के साथ
प्रसव के समय: उत्पाद मात्रा के अनुसार
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: 30000सेट/माह
परिचालन तापमान: |
-10°C से 50°C |
आंतरिक व्यास: |
267/300/325/350/400 मिमी |
बिजली की आपूर्ति: |
24V डीसी/110V एसी |
नाममात्र की मात्रा: |
40L/70L/100L/120L/180L/245L |
भंडारण का दबाव: |
1.6 एमपीए |
परिचालन तापमान: |
-10°C से 50°C |
आंतरिक व्यास: |
267/300/325/350/400 मिमी |
बिजली की आपूर्ति: |
24V डीसी/110V एसी |
नाममात्र की मात्रा: |
40L/70L/100L/120L/180L/245L |
भंडारण का दबाव: |
1.6 एमपीए |

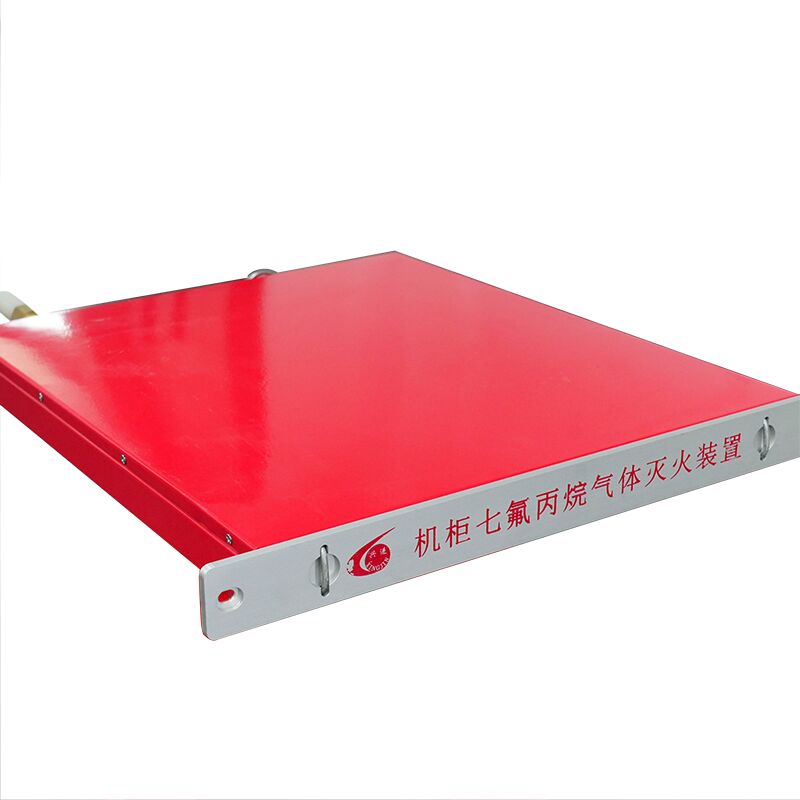

The heptafluoropropane gas fire extinguishing device for cabinets is an innovative automatic fire extinguishing product independently developed by our company. It is an automatic fire extinguishing device specially developed for cabinets.Our self-activating fire suppression system represents a breakthrough in fire safety technology. Engineered for instantaneous fire detection and autonomous extinguishing, this innovative solution delivers round-the-clock protection for both homes and businesses. Its fully automated operation ensures rapid response to fire emergencies without requiring human action.
|
Type of Device |
Server-rack fire suppression unit |
|
Device model |
JGQ2/1.6-XJ |
|
Size |
745mm×425mm×42mm |
|
Storage of container |
2L |
|
Max filling rate |
1.15kg/L |
|
Storage pressure (20℃) |
1.6MPa |
|
Max. working pressure |
2.5MPa |
|
Glass ball starting temperature |
68 ℃ |
|
Action temperature of fire detecting tube |
160 ℃ ±10 ℃ |
|
Max. Length of Fire Tube |
25m |
|
Working temperature |
0 ℃~50 ℃ |
When cabinet temperature reaches the preset level (68°C or customized), the glass bulb bursts automatically, releasing FM200 agent instantly.
The fire detection tube ruptures at the hottest point when exposed to flame, triggering the discharge of the clean agent directly at the fire source.
Both methods ensure rapid response without the need for smoke detectors, control panels, or electrical triggering systems.
| Model specifications |
Dimensions A×B×H (mm) |
Storage container capacity (L) |
Heptafluoropropane filling density (kg/m3) |
Storage pressure (20℃;Mpa) |
Maximum working pressure (50℃;Mpa) |
Applicable environment |
| JGQ2/1.6-XJ | 745×425×42 | 2 | ≤1150 | 1.6 | 2.5 | 0℃--50℃ |
1. Inside server cabinets for IT and computer systems;
2. Inside server cabinets for telecommunications and communication systems;
3. Inside control cabinets for banking equipment;
4. Various control cabinets for machinery and other industries
|
Comparative item |
Traditional gas fire extinguishing system |
Server-rack fire suppression unit |
|
Protected object |
Large enclosed space, such as whole room, cable interlayer, etc. |
Various cabinet bodies with small volume, such as 19u cabinet and variable distribution cabinet, etc. |
|
Construction and installation |
The construction is complicated and the construction period is long ( tubelines, tubelines, storage rooms, etc. ) Unable to protect small spaces such as cabinets It must be completed when new construction is completed, and it is difficult to reform in the later period, which is easy to cause damage. |
Simple installation and short construction period Small space of cabinet body can be protected The installation does not cause damage when the equipment works normally. |
|
Maintenance and operation |
Special power supply is required; Electronic components are easily affected by external environment; The system is complex and requires professional and technical personnel to maintain. |
No power supply required; No electrical components; The system is easy to maintain.
|
|
Safety performance |
The room needs to be completely submerged, the dosage of fire extinguishing agent is large, and personnel must be evacuated when spraying. Large dosage, easy to pollute the environment. |
Only small spaces are completely submerged, the dosage of fire extinguishing agent is small, the influence of released gas on personnel is extremely small, and evacuation of personnel is not required; The dosage is small, and the environmental pollution is small. |
|
Fire fighting performance |
The second-level early warning of the system will be delayed by 30s, the extinguishing speed will be slow. The fire extinguishing agent is sprayed on the whole protective area, and the pertinence is not strong. |
The fire detection tube and the temperature sensing glass ball are directly arranged in the cabinet body, The fire extinguishing agent is released immediately when the fire source is detected, put out the fire quickly；Point-to-point fire fighting |
|
Cost |
The dosage of fire extinguishing agent is large,high cost |
The dosage of fire extinguishing agent is small,low cost |
Company Introduction:
Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
F:Are you a trading company or a manufacturing factory?
Q:We are both a manufacturer and a trading company. We have our own factory for nearly 15 years, and we provide better services to overseas customers.
F:Can you do OEM production for me?
A:We accept all OEM orders, just contact us and provide your design plan, we will provide you with a reasonable price as soon as possible.
F:How do you ensure product quality?
A:We have TUV/SGS/ISO quality control system and strictly implement it. We have a professional quality inspection team, and each packing worker will conduct a final inspection before packaging according to the quality inspection instructions.
F:Apart from the all-in-one machine, do you have any other conventional fire-fighting equipment?
A:Of course, we have a complete set of professional fire extinguishing equipment, ranging from sound and light alarms to windbreak and smoke exhaust valves, as well as fire extinguishing systems such as FM200, CO2, and Novec1230. We welcome your inquiries!
F:How about the delivery time?
A:According to the minimum order quantity, delivery will be made in 10-15 working days after receiving the deposit. Normally, an order of a 20-foot container takes 30-35 days to complete.
Welcome to inquire about the specific delivery time according to your order quantity!
